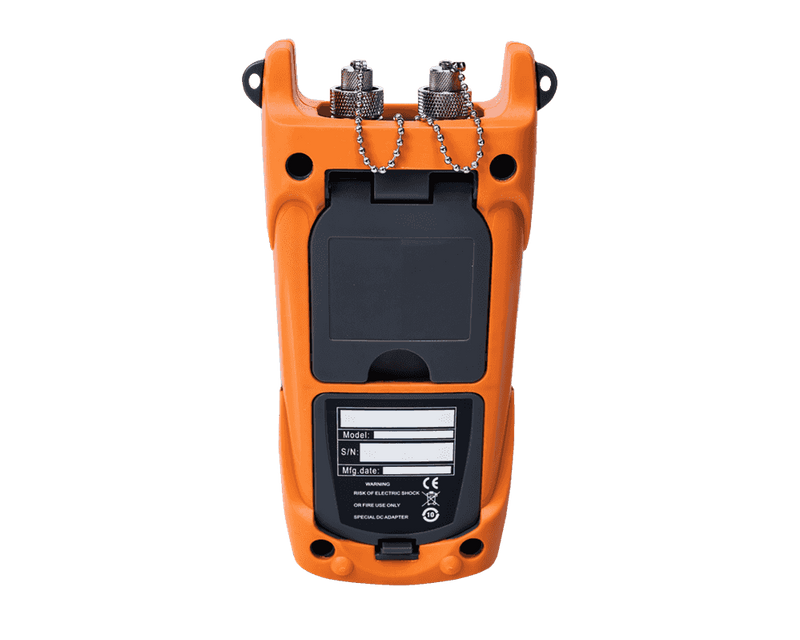

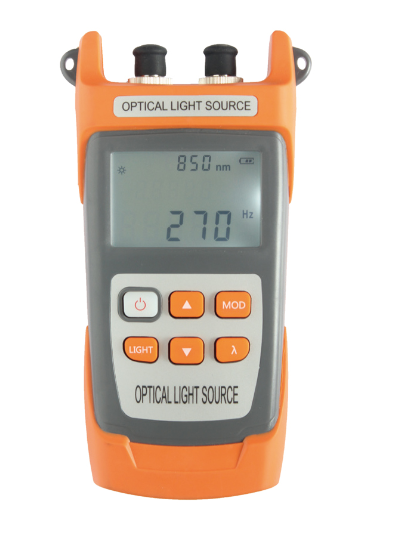

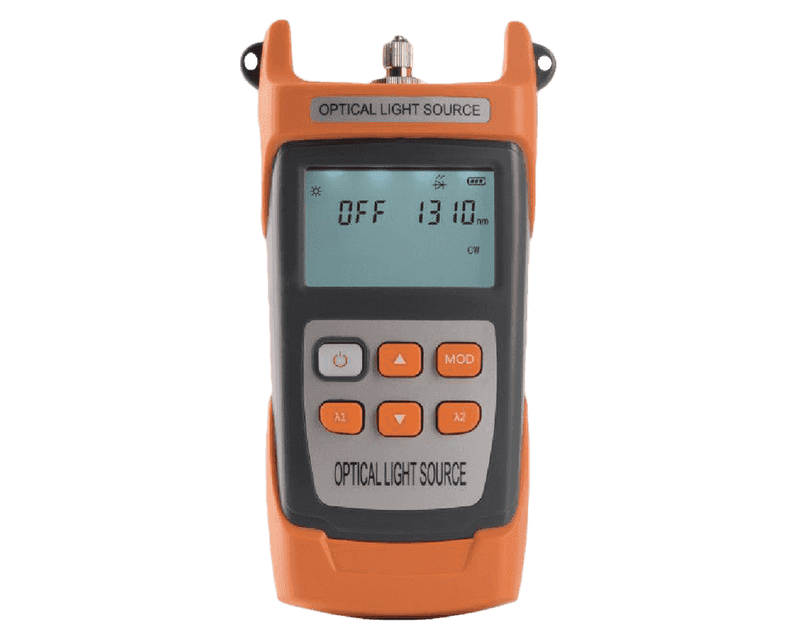

FOLS-A Series Fiber Optical Light Source
SM 1310/1550nm | MM 850/1300nm | PON 1310/1490/1550nm | SM&MM 850/1300 & 1310/1550nm
Description:
3S FOLS-A Fiber Optical Light Source is used to test fiber optic link loss and multi-fiber continuity in optical fiber systems. FOLS-A series optical light source provides high stability and portability for accurate fiber optic testing.
Features:
1. Support automatic shutdown and backlight
2. Support SM 1310/1550, MM 850/1300nm, PON 1310/1490/1550nm, SM&MM 850/1300&1310/1550nm and customization 1625 or 1650nm
3. Support CW and frequency 270Hz / 1000Hz / 2000Hz mode
Technical Specifications:
Part Number | FOLS-8530A | FOLS-3155A | FOLS-85303155A | FOLS-314955A |
Wavelength (nm) | 850/1300 | 1310/1550 | 850/1300 1310/1550 | 1310/1490/1550 |
Fiber Type (um) | 62.5/125 | 9/125 | 62.5/125&9/125 | 9/125 |
Type of Laser | FP-LD |
Spectral Width (nm) | 5 |
Output Power (dBm) | ≤-5 |
Stability | ±0.02dB / 8h |
Mode | CW / 270Hz / 1000Hz / 2000Hz |
Power Regulation | 0 ~ 6dB, 1dB / step |

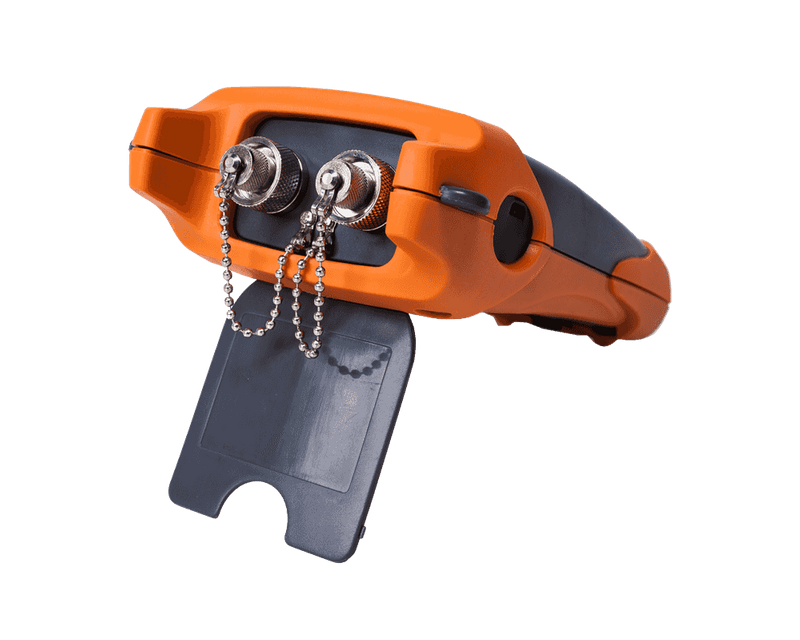

Connector Port | FC/PC |
General Information |
Power Supply | 3pcs AA Battery |
Automatic Shutdown Time (min) | 10 |
Operating Temperature (C) | -10~+50 |
Storage Temperature (C) | -40~+70 |
Relative Humidity | 0 ~ 95% No Condensing |
Instrument size (mm) | 186 x 100 x 50 |
Weight (g) | 240g |
