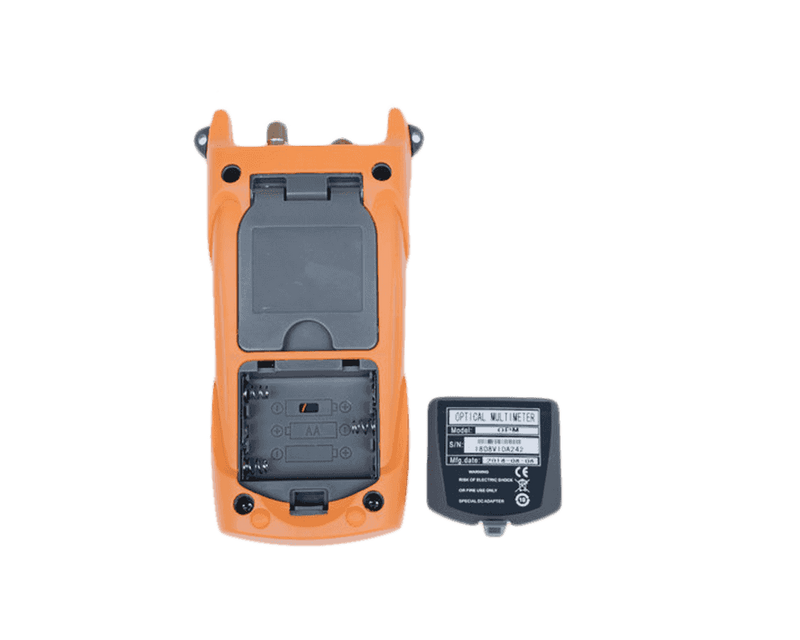

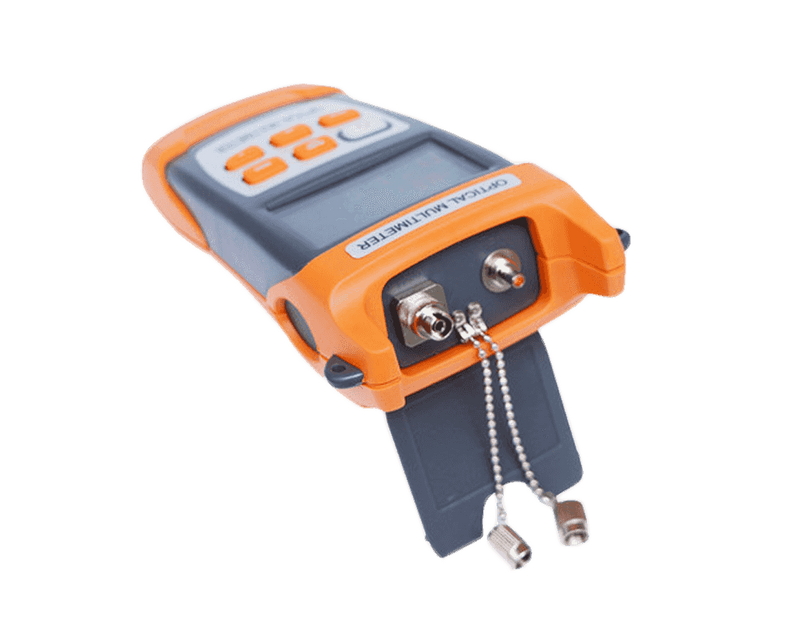

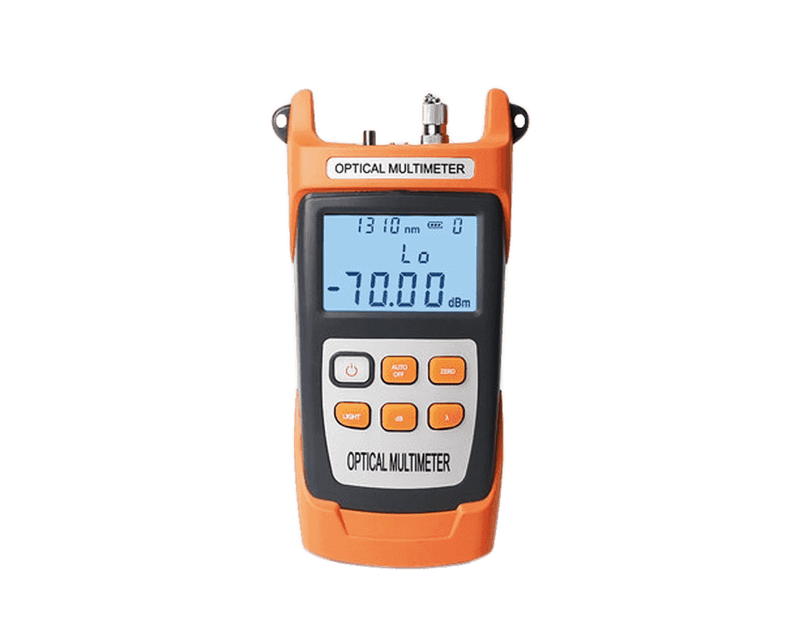

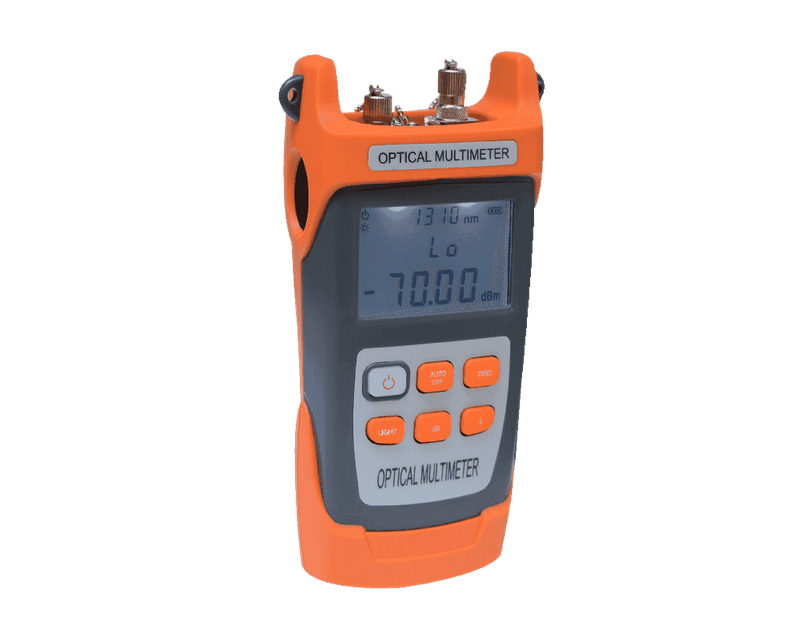

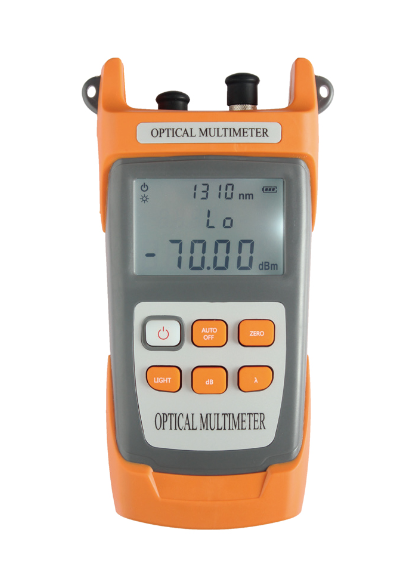

FOPM-A Fiber Optical Multi-Meter / Fiber Optical Power Meter
Optical Power Meter | Visual Fault Locator (Optional)
Description:
3S FOPM-A Fiber Optical Multi-Meter is a multi-function testing instrument by integrating fiber optical power meter (OPM) and visual fault locator (VFL). The optical power meter (OPM) is used to test the loss of fiber optic link. The visual fault locator (VFL) is a visible light source, used to find the break points of fiber optic cable.
Features:
1. Support automatic shutdown
2. Support backlight switch
3. Support user self-calibration
4. Visual fault locator function optional
Technical Specifications:
Part Number | FOPM-7006A | FOPM-5026A |
Optical Power Meter (OPM) |
Wavelength Range(nm) | 800-1700 | 800-1700 |
Fiber Connector | 2.5mm universal connector (suitable for FC SC ST) |
Type of Detector | InGaAs |
Measurement Range(dBm) | -70~+6 | -50~+26 |
Uncertainty | ±5% |
Calibration Wavelength (nm) | 850/980/1300/1310/1490/1550/1625/1650 |
Display Resolution | Linear display: 0.1%, logarithmic display: 0.01 dBm |
Visual Fault Locator (VFL) -Optional |
Working Wavelength (nm) | 650±30 |
Output Power (mW) | 2 / 10 / 30 |
Mode | CW / 1Hz / 2Hz |
Connector Port | 2.5mm universal connector (suitable for FC SC ST) |
General Information |
Power Supply | 3pcs AA Battery |
Automatic Shutdown Time (min) | 10 |
Operating Temperature (C) | -10~+50 |
Storage Temperature (C) | -40~+70 |
Relative Humidity | 0 ~ 95% No Condensing |
Instrument size (mm) | 186 x 100 x 50 |
Weight (g) | 140 / 150g |
