2100Pro Series OTDR
3STelecom

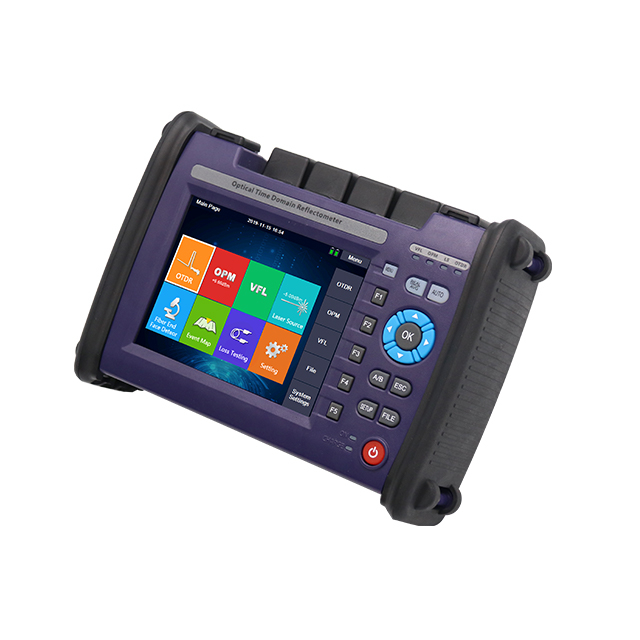

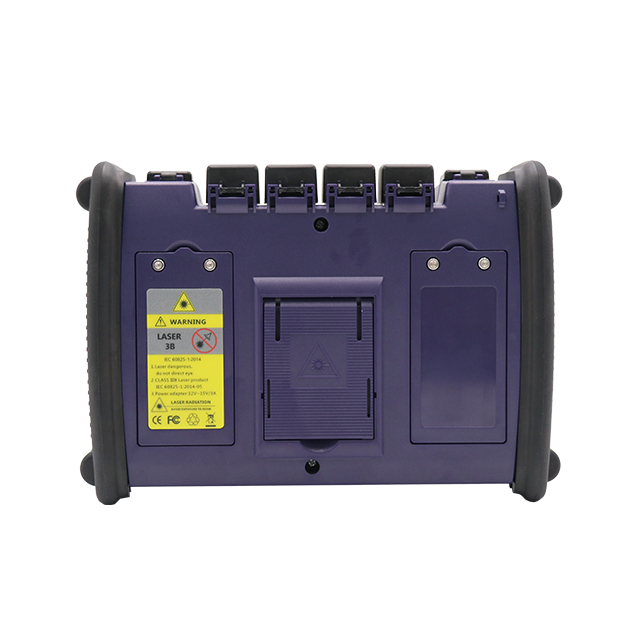

3S 2100Pro Series OTDR is the all-in-one handheld testing device with OTDR function, optical power meter, optical light source, visual fault locator, fiber-end-face inspection, loss testing and event map. It is used for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
General Specification
Size/Weight | 215x155x68mm / 1.1kg (Battery included) |
Display | 5.6 inch touch-sensitive TFT-LCD screen with LED Backlight 800x480 TFT |
Interface | 2xUSB port (Type A x 1, Type B x 1), 4 x Optical Port(1xVFL port, 1xOPM port, 2xOTDR port) |
Power Supply | Power supply AC/DC adapter, 12V(dc), 100V(ac) to 240V(ac), 50~60Hz |
Battery | 7.4V(dc)/2500mAh x 2pcs rechargeable lithium battery (with Air Traffic Certification) Operating time: 12 hours1 Telcordia GR-196-CORE Charging time: <3 hours (power off) |
Power Saving | Backlight -Common/Highlight/Power saving/Customized, Auto Power Off -Never/1min/5min/10min/30min/60min |
Data Storage | Internal memory: 16GB (about 100,000 groups of curves) |
Language | Multi-language support including but not limited to Chinese, English, Spanish, French,Korean,ItalianandPortuguese-contact us for availability of others) |
Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation), Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation) |
Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case, Optional: SC/ST/LC adapter, Bare fiber adapter |
OTDR Module
Pulse Width | Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs |
Distance Range | Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km |
Sampling Resolution | Minimum 5cm |
Sampling Point | Maximum 256,000 points |
Linearity | ≤0.05dB/dB |
Averaging Time | 10s, 15s, 30s, Real Time, Customized |
Scale Indication | X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div |
Distance Resolution | 0.01m |
Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
Reflectance Accuracy | Single mode: ±2dB, multi-mode: ±4dB |
IOR Setting | 1.2000~1.5999, 0.0001 step |
Units | km, miles, kfeet |
OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up |
Testing Modes | Visual fault locator: Visible red light for fiber identification and troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output) Field microscope probe |
Fiber Event Analysis | -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps) |
Other Functions | Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison |
VFL Module (Visual Fault Locator)
Wavelength (±20nm) | 650nm |
Power | 10mw, CLASSIII B |
Range | 12km |
Connector | FC/UPC |
Launching Mode | CW/2Hz |
OPM Module (Optical Power Meter)
Wavelength Range (±20nm) | 800~1700nm |
Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
Test Range | Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional) |
Resolution | 0.01dB |
Accuracy | ±0.35dB±1nW |
Modulation Identification | 270/1k/2k Hz, P input≥-40dBm |
Connector | FC/UPC |
OLS Module (Optical Laser Source)
Working Wavelength (±20nm) | Same as OTDR Wavelength |
Output Power | -5dBm±1dB |
Output Mode | CW/270/1k/2k Hz |
FM Module (Fiber Microscope, software is free, hardware inspection probe is sold separately):
Magnification | 400X |
Resolution | 1.0µm |
View of Field | 0.40×0.31mm |
Storage/working Condition | -18℃~35℃ |
Dimension | 235×95×30mm |
Sensor | 1/3 inch 2 million of pixel |
Weight | 150g |
USB | 1.1/2.0 |
Adapter② | SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) |
Ordering Information
Part Number③ | Testing Wavelength (MM: ±20nm, SM: ±10nm) | Dynamic Range (dB)④ | Event/Attenuation Dead-zone (m)⑤ |
PRO2100-A32 | 1310/1550 | 32/30 | 0.8/4 |
PRO2100-A35 | 1310/1550 | 35/33 | 0.8/4 |
PRO2100-A37 | 1310/1550 | 37/35 | 0.8/4 |
PRO2100-A40 | 1310/1550 | 40/38 | 0.8/4 |
PRO2100-A42 | 1310/1550 | 42/40 | 0.8/4 |
PRO2100-A45 | 1310/1550 | 45/43 | 0.8/4 |
PRO2100-B32 | 1625 | 32 | 0.8/4 |
PRO2100-B35 | 1625 | 35 | 0.8/4 |
PRO2100-B38 | 1625 | 38 | 0.8/4 |
PRO2100-AB35 | 1310/1550/1625 | 35/33/32 | 0.8/4 |
PRO2100-AB40 | 1310/1550/1625 | 40/38/37 | 0.8/4 |
PRO2100-AB42 | 1310/1550/1625 | 42/40/38 | 0.8/4 |
PRO2100-AB45 | 1310/1550/1625 | 45/43/40 | 0.8/4 |
PRO2100-C32 | 1650 | 32 | 0.8/4 |
PRO2100-C35 | 1650 | 35 | 0.8/4 |
PRO2100-C38 | 1650 | 38 | 0.8/4 |
PRO2100-AC35 | 1310/1550/1650 | 35/33/32 | 0.8/4 |
PRO2100-AC40 | 1310/1550/1650 | 40/38/37 | 0.8/4 |
PRO2100-AC42 | 1310/1550/1650 | 42/40/38 | 0.8/4 |
PRO2100-AC45 | 1310/1550/1650 | 45/43/40 | 0.8/4 |
PRO2100-AP35 | 1310/1490/1550 | 35/33/33 | 0.8/4 |
PRO2100-AP40 | 1310/1490/1550 | 40/36/38 | 0.8/4 |
PRO2100-M26 | 850/1300 | 22/26 | 2/6 |
PRO2100-AM32 | 1310/1550 & 850/1300 | 32/30 & 22/26 | 0.8/4 & 2/6 |
PRO2100-AM35 | 1310/1550 & 850/1300 | 35/32 & 22/26 | 0.8/4 & 2/6 |
PRO2100-AM40 | 1310/1550 & 850/1300 | 40/38 & 22/26 | 0.8/4 & 2/6 |
Notes:
① Typical, backlight off, sweeping halted at 25℃, 12 hours typical continuous testing.
② For more adapters, please contact us.
③ Part number including wavelength 1625nm, 1650nm and 1490nm are integrated with optical filter, which allow them to test PON network online (by using 1625nm, 1650nm or 1490nm wavelength) and will not interrupt the fiber signal.
④ Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.
⑤Event dead zone is measured with pulse width of 3ns(10ns); attenuation dead zone is measured with pulse width of 5ns (50ns).
