FOPM-D Series Fiber Optical Multi Power Meter |
Multi functions-Optical Power Meter & Visual Fault Locator (VFL) 15mW | Supporting 8 Working Wavelength 850/1270/1300/1310/1490/1550/1577/1625nm |
 | |
Description:

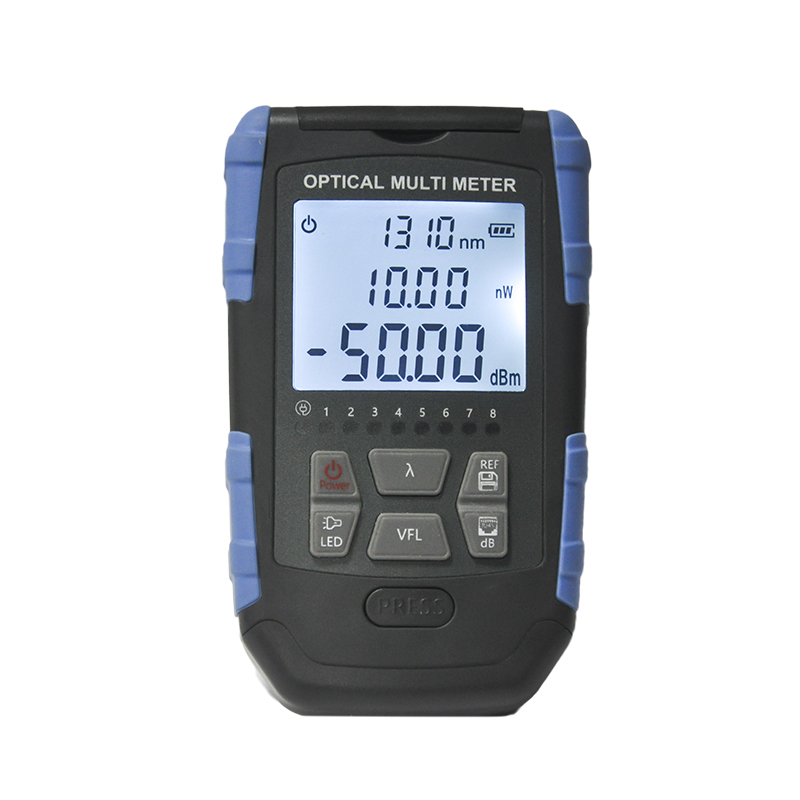

3S FOPM-D Fiber Optical Multi Power Meter is a multi-function testing instrument by integrating fiber optical power meter and visual fault locator. The optical power meter (OPM) is used to test the loss of fiber optic link. The visual fault locator is a visible light source, used to find the break points of fiber optic cable.
FOPM-E fiber optical multi-meter is mainly used for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing. It is also widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields. The body design meets the requirements of human body function and adopts advanced thermoplastic moulding technology, which is beautiful and durable. It is a useful and cost effective tool for engineers in the field.
Features:
1. Support lighting, used for dark environment
2. Support automatic shutdown
3. Support backlight switch
4. Support Wavelength Memory Function
5. Support user self-calibration
6. Support simultaneous display of mW and dBm
7. 2.5mm universal connector for OPM and VFL port
8. Support external power supply such as charging treasure, computer, etc.

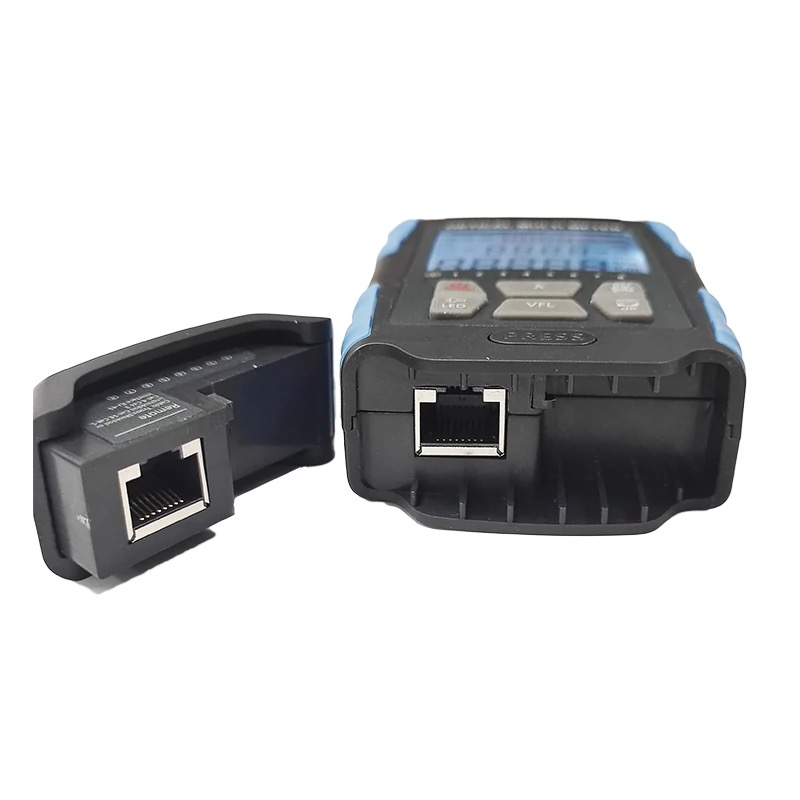

9. Support RJ45 testing (optional)
Technical Specifications:
Part Number | FOPM-7006D | FOPM-5026D |
Optical Power Meter (OPM) |
Wavelength Range(nm) | 800-1700 | 800-1700 |
Fiber Connector | 2.5mm universal connector |
Type of Detector | InGaAs |
Measurement Range(dBm) | -70~+6 | -50~+26 |
Uncertainty | ±5% |
Calibration Wavelength (nm) | 850/1270/1300/1310/1490/1550/1577/1625 |
Display Resolution | Linear display: 0.1%, logarithmic display: 0.01 dBm |
Visual Fault Locator (VFL) |
Working Wavelength (nm) | 650 |
Output Power (mW) | 15 |
Operating Temperature (C) | -10~+50 |
Storage Temperature (C) | -30~+70 |
Automatic Shutdown Time (min) | 10 |
Instrument size (mm) | 110 x 68 x30 |
Power Supply | 2pcs AAA alkaline batteries |
Weight (g) | 140g |
Packing List | Main unit x1pcs, certificate x1pcs, user manual x1pcs |
