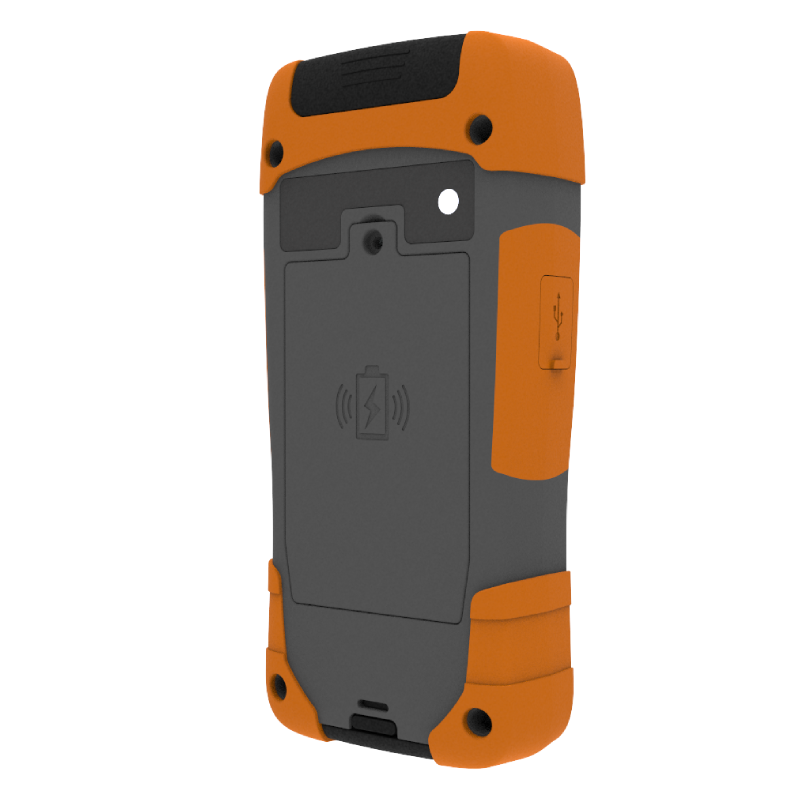

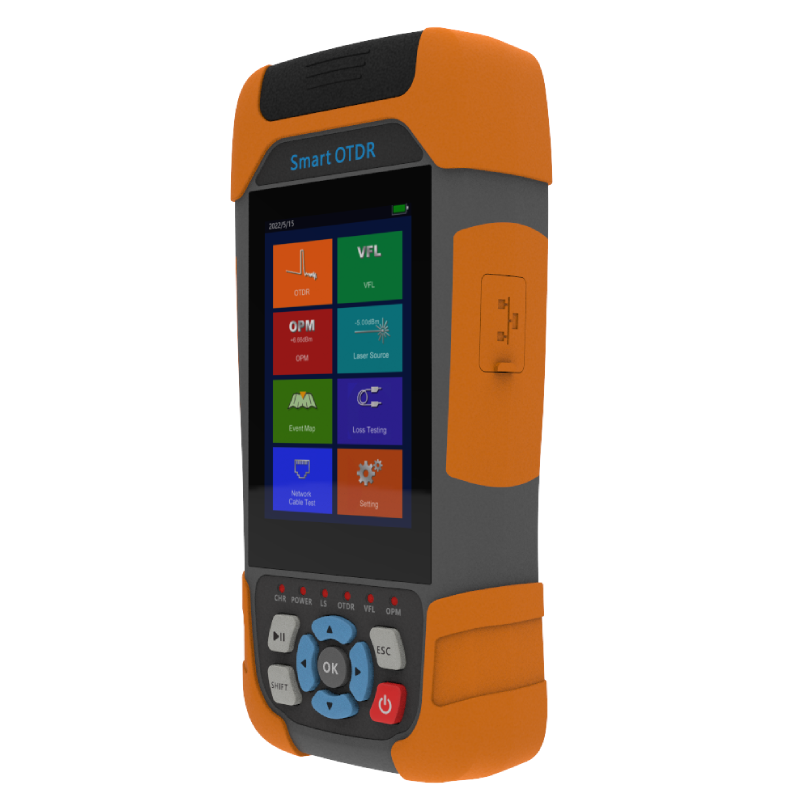

| 1000Smart OTDR side view | 1000Smart OTDR front view | 1000Smart OTDR rear view |
Description of 1000Smart OTDR
1000Smart Series Optical Time Domain Reflectometer is a smart, simple and easy for engineers operation OTDR tester. It is an intelligent OTDR with multi-functions built in 8 functions into 1 OTDR machine like OTDR, stable optical light source, optical power meter, visual fault locator, event map, loss testing, RJ45 cable sequence testing and flash light.
1000Smart OTDR adopts a 3.5 inch color capacitive touch screen. It supports wireless charging function and large capacity battery working performance. The battery can ensure 10 hours ultra long time measurement and 20hours ultra long standby, which ensures heavy testing tasks.
1000Smart OTDR is mainly used to measure the fiber length, loss, average loss, return loss and connection quality etc. It has automatic optical protection function to prevent damage to optical laser diode. It supports online live fiber testing by adding fiber filter with the maximum online live optical power -2dbm. It can be widely used in the fields of engineering construction, fiber fault repair, optical fiber maintenance, engineering acceptance, research and production of optic fiber cable.
Features of 1000Smart OTDR
3.5 inch TFT LCD Touch Screen
Type C USB and wireless charging
Large capacity battery 20 hours
Short event dead zone 2.5 m
Palm handheld design compact and lightweight
Hidden optical interface design,shock and fall resistant
Specifications of 1000Smart OTDR
Optical Time Domain Reflectometer |
Model | 1000Smart-D | 1000Smart-SF1 | 1000Smart-SF2 | 1000Smart-SF3 | 1000Smart-SF4 | Smart1000-SF5 |
Wavelength | 1310/1550± 20nm | 1310±20nm | 1550±20nm | 1610±20nm | 1625±20nm | 1650±20nm |
Dynamic range | 24/22dB | 24dB | 22dB | 22dB | 22dB | 22dB |
Fiber type | G .652D |
Event dead zone | 2 . 5 m |
Attenuation zone | 8 m |
Measuring range | 100m/500m/1 km/2 km/5 km/10km/20km/40km/60km/90km |
Pulse width | 5ns/10ns/20ns/50ns/100ns/200ns/500ns/1us/2us/5us/10us |
Accuracy | ±( 1m+Sampling interval+0.005% X measuring range) |
Linearity | ±0 .2d B/dB |
Sample points | Maximum sampling points：20000 |
Sampling resolution | 25cm~8 m |
Loss resolution | 0 .001d B |
Range resolution | 0 .001m |
Refractive index | 1 .0000~2 .0000 |
Reflection accuracy | ±3dB |
File format | Standard sor file format |
Safety level | Class 3B |
Environment | Working temperature：- 10℃~50℃ Storage ambient temperature：-40℃~+70℃ Humidity：0~90%(non condensing) |
Size / weight | Size ：17 x 12 x 3cm weight：340g |
OPM | Laser source
| Other module |
Wavelength | 850/ 1300/ 1310/ 1490/ 1550/ 1625/1650nm | Wavelength | 1310/1550n | VFL | Wavelength 650nm |
Range | A:-70~+10d B m | Laser type | FP - LD | Output power 10mW |
| B:-50~+26d B m | Output Power | -5dBm±2dB | Universal connector 2.5mm |
Frequency | 270Hz/330Hz/ 1 k Hz/2 k Hz | Uncertainty | ±5% | Battery | 4000mAh/3 .7V |
Uncertainty | ±5% | Connector | Same as OTDR port | Adapter | USB(Type C) |
| Connector | Universal connector 2.5mm | Customized | Memory | Inside≥1000 , external:SD |
