10G PON Testing Guide: Understanding XG-PON, XGS-PON and Optical Power Measurement
Introduction
The rapid growth of broadband services, cloud applications, video streaming, and smart devices is driving the evolution of fiber access networks. Many telecom operators and service providers are upgrading existing GPON networks toward next-generation PON technologies, including XG-PON, XGS-PON, and 10G-EPON.
With these network upgrades, traditional PON testing methods may no longer provide sufficient wavelength coverage or measurement capability. Technicians require advanced PON testing instruments to verify optical power levels, confirm network performance, and ensure reliable FTTH deployment.
A dedicated 10G PON Power Meterprovides an efficient solution for measuring multiple PON wavelengths and supporting installation, commissioning, acceptance testing, and maintenance of next-generation fiber access networks.
1. What Is 10G PON?

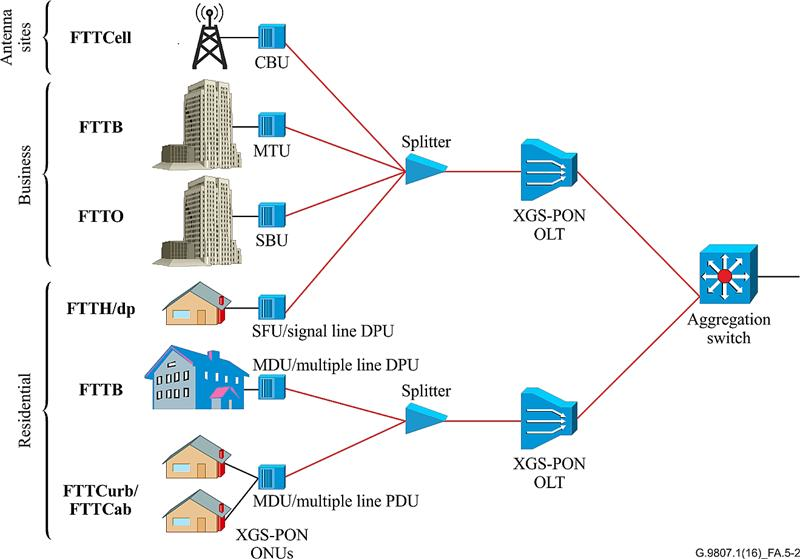

Passive Optical Network (PON) is a fiber access technology widely used for FTTH (Fiber To The Home) deployments.
Traditional GPON networks provide high-speed broadband access, but increasing bandwidth requirements have encouraged operators to migrate toward 10G PON technologies.
The main next-generation PON standards include:
Technology
Downstream
Upstream
GPON
2.5Gbps
1.25Gbps
XG-PON
10Gbps
2.5Gbps
XGS-PON
10Gbps
10Gbps
10G-EPON
10Gbps
10Gbps
Compared with GPON, XG-PON and XGS-PON provide significantly higher bandwidth and support future broadband services.
2. Why Does 10G PON Require Dedicated Testing?
Different Wavelength Requirements

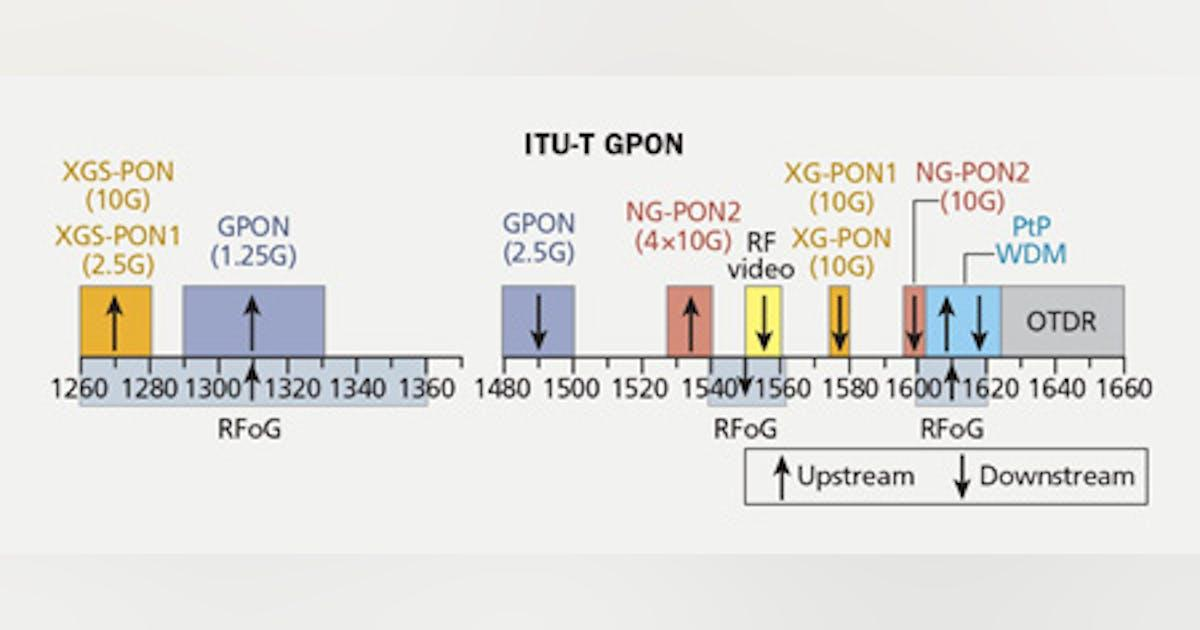

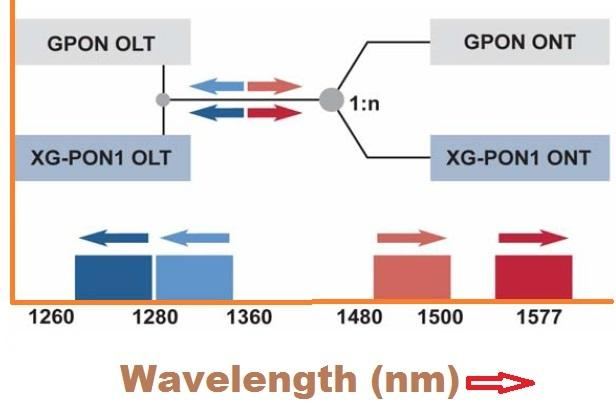

One of the major differences between traditional GPON and 10G PON networks is wavelength allocation.

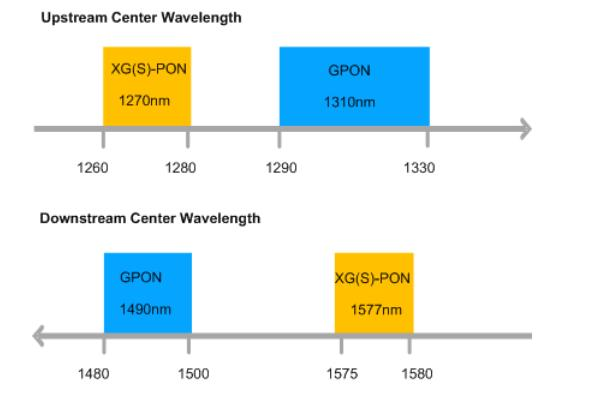

Typical PON wavelengths include:
PON Technology
Upstream
Downstream
GPON
1310nm
1490nm
CATV Overlay
—
1550nm
XG-PON
1270nm
1577nm
XGS-PON
1270nm
1577nm

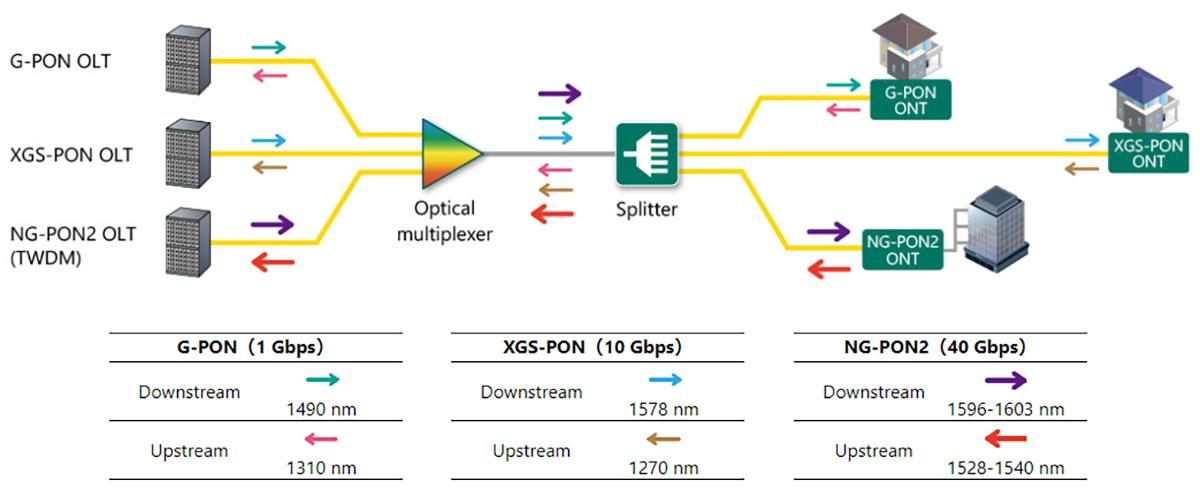

During network migration, multiple optical signals may coexist on the same fiber.
Therefore, technicians need test instruments capable of identifying and measuring different wavelengths accurately.
3. Traditional PON Power Meter vs 10G PON Power Meter
A traditional PON power meter is usually designed for GPON and EPON networks.
However, next-generation PON networks introduce additional wavelengths such as:
1270nm upstream
1577nm downstream
A dedicated 10G PON power meter provides:
Wider wavelength coverage
Multi-channel PON signal measurement
Accurate optical power verification
Support for network upgrade projects
This makes it an essential tool for operators and contractors working on XG-PON and XGS-PON deployments.
4. How Does a 10G PON Power Meter Work?
A 10G PON power meter measures optical power levels from different PON wavelengths and helps technicians verify whether optical signals meet network requirements.
Typical functions include:
Multi-Wavelength Measurement
Simultaneously measure:
1270nm
1310nm
1490nm
1550nm
1577nm
PON Signal Identification
Identify different optical signals from:
OLT
ONU/ONT
CATV overlay systems
Pass/Fail Analysis
Compare measured optical power against predefined thresholds to quickly determine whether a fiber link meets acceptance requirements.
Data Recording
Store measurement results for:
Installation records
Network acceptance
Maintenance reports
5. Applications of 10G PON Testing
FTTH Installation
Verify optical power levels during fiber deployment and customer connection activation.
Network Upgrade
Support migration from GPON to XG-PON and XGS-PON networks.
OLT and ONU Testing
Confirm optical communication performance between central office equipment and customer premises equipment.
Network Acceptance Testing
Provide measurement records for project acceptance.
Troubleshooting and Maintenance
Identify abnormal optical power conditions that may affect service quality.
6. How to Choose a 10G PON Power Meter?
When selecting a 10G PON testing instrument, consider:
Supported PON Standards
Check compatibility with:
GPON
EPON
10G-EPON
XG-PON
XGS-PON
Wavelength Coverage
Ensure the instrument supports required wavelengths:
1270nm
1310nm
1490nm
1550nm
1577nm
Measurement Functions
Consider:
Simultaneous wavelength measurement
Pass/fail thresholds
Data storage
USB communication
Optical power meter function
Visual fault locator (VFL)
Field Usability
For technicians working outdoors, important factors include:
Portable design
Battery life
Rugged housing
Easy operation
7. 3S Telecom 10G PON Power Meter Solution

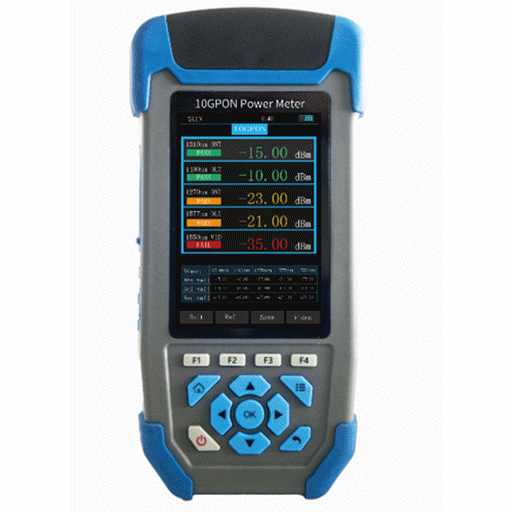

3S Telecom provides handheld 10G PON power meters designed for next-generation fiber access network testing.
Our instruments support multiple PON technologies and help technicians perform:
Optical power verification
FTTH installation testing
XG-PON/XGS-PON maintenance
Network acceptance testing
PON troubleshooting
For operators, ISPs, and fiber contractors upgrading their networks, 3S Telecom provides practical PON testing solutions for reliable fiber access deployment.
Need the Right 10G PON Testing Solution?
Tell us your network standard, required wavelengths, and testing application.
